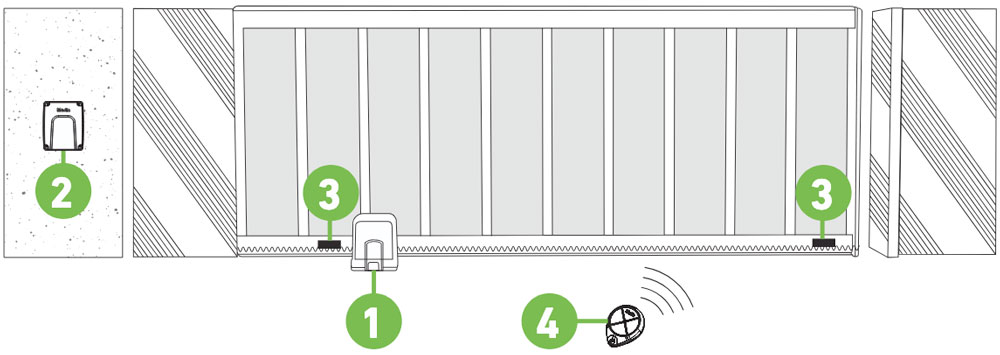

Typical Setup:
- Merlin Sliding Gate Motor (GMSG611)
- Low Voltage Transformer (ET840)
- Magnetic Limit Switches
- Merlin Remote Control (GM833)
Recommended Power Wiring:
Flexible 3-core wire between the Merlin Slider (1) and the Transformer Box (2).
Distance | Cable Size |
Less than 20m | Min 1.5mm |
20-50m | Min 2.5mm |
50-100m | Min 4mm |
