The ET278 Digital Dual Relay Keypad is a weather-resistant access control keypad designed for reliable performance in various environments. With its robust construction and durable materials, it can withstand harsh weather conditions, making it suitable for outdoor installations. This keypad features dual relays, allowing you to control multiple access points or devices with a single unit. The weather-resistant design ensures long-lasting functionality and protection against elements such as rain, dust, and sunlight.
Only works with TigerlinkTech Motor & GM508 TigerTech Universal Receiver
- Waterproof, conforms to IP53
- Two relays operation
- Card type: 433.92KHZ EM card
- PIN length: 4 digits
- Latch mode to hold door or gate open
- Working Temperature: -40℃ ~ 60℃ （-40℉ ~ 140℉）
- Product Dimension:170 * 83 * 26mm
The KP Receiver will need to be wired into your gate control board and the keypad will tune to the receiver.
- Lithium Battery – 3.7v 2Ah
- Charge Cable – USB C
- Pin Code Capacity – 640
- Card reader – Yes
- Frequency – 433.92MHz
- 2 Channel

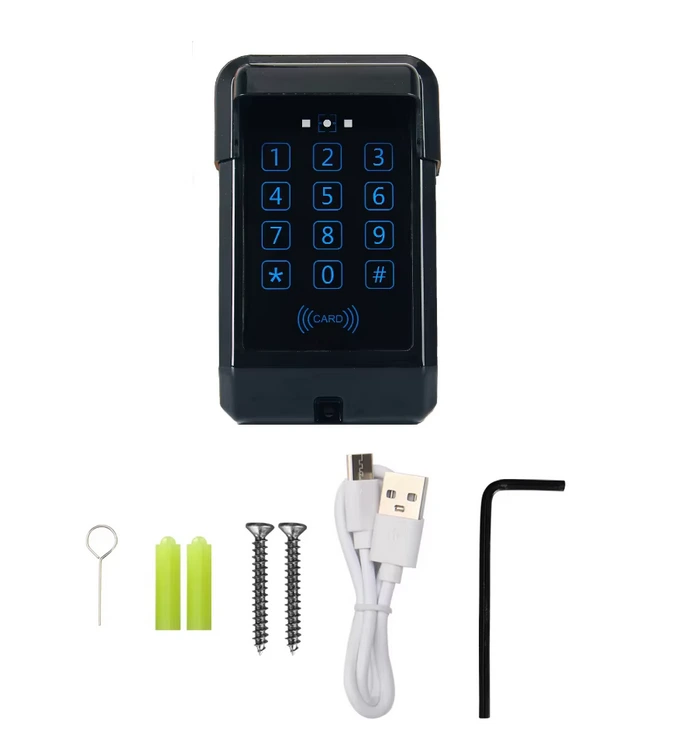

Package includes:
1 x Metal Access Control
1 x Installation Kit
1 x User Manual
2 x Card Reader
Installation Tip
Fully charging the keypad before installation required.
If you hear two beeps during programming, it usually means an incorrect step was entered.
The red light indicates charging. It will stay on while charging and turn off once the battery is fully charged.
The green light is the transmission indicator and will light up when a signal is being sent.
The blue light is the programming indicator. It will flash while you are in programming mode and will remain solid if the keypad is locked out.
When mounting the keypad to a post, avoid over tightening the screws. Excessive force may distort the housing, which can allow water to enter and may void the warranty.
Installation Manual:
https://www.youtube.com/watch?v=ZeZn73di5y8
