Sliding gate motors provide a reliable and space-efficient solution for automating gates that operate horizontally. They are widely used across Australia for residential driveways, commercial properties, and industrial sites where swing gates are not practical.At Tigerlink, our range of sliding gate motors is compatible with various gate configurations, including cantilever sliding gates, ground track systems, curved sliding gates, and telescopic gates. Whether for light residential use or heavy-duty industrial applications, we offer solutions built for durability and consistent performance.
How to Choose a Sliding Gate Motor: The Ultimate Buyer’s Guide
Choosing the right sliding gate motor mainly depends on the weight and the dimensions of your gate. Using a motor that matches your gate weight ensures smooth operation, longer lifespan, and reliable performance. We offer a wide range of sliding gate motor kits including low voltage motor system , solar sliding gate systems, and heavy duty automatic gate motors for commercial use.
Selecting the right sliding gate automation is about more than just finding a motor that fits; it’s about ensuring long-term reliability and safety. As a technician at Tigerlink, I see many systems fail prematurely because the motor was poorly matched to the gate.
Follow this guide to ensure you choose a motor that will perform for years to come:
The most common mistake is choosing a motor that exactly matches your gate's weight. To protect the internal gears and electronics, you should always leave a "power buffer."
The Buffer Rule: If your gate weighs 400kg, do not push a 400kg-rated motor to its absolute limit. Instead, step up to a 600kg motor.
The Length Factor: If your gate is exceptionally long (e.g., 8 meters) but light (300kg), you still need a larger motor. The motor will be running for much longer cycles, and a 600kg or 1000kg unit will handle that heat and friction far better than a residential entry-level model.
The Slope Penalty: If your gate track is on even a slight slope, gravity makes the motor work significantly harder. Always go up one size to compensate for the incline.
If you aren't sure how much your gate weighs, use this simple field test to estimate the required motor strength:
One Finger: If you can slide the gate open and closed with just one finger, a 400kg motor is sufficient.
Two Fingers: If it takes two fingers to move the gate, we recommend a 600kg motor.
The Whole Hand: If you have to use your whole hand or lean your body weight into it, you likely require a 1000kg+ industrial motor.
The Duty Cycle refers to how many times the gate opens and closes in a day.
Residential Use: If the gate opens roughly 4–10 times a day, a standard residential motor is perfect.
Commercial/Industrial Use: If the gate is for a complex or business where it opens more than 50 times a day, you must invest in an industrial-grade motor designed for high-frequency operation.
If you already have an automated garage door or an existing gate at your workplace, try to stick with the same brand (e.g., Beninca or Merlin). This allows you to program one remote to multiple motors, saving you from carrying a bulky handful of different controllers.
Mains Voltage (240V AC)
This is the most common and reliable setup. It uses a standard 240V plug near the gate.
Note: Many modern motors are labeled as 24V DC, but they still plug into a 240V AC power point. The conversion happens safely inside the motor casing. This provides the safety and "soft-start/stop" features of DC while using standard 240v power.
Low Voltage (Remote Transformer)
This setup is used when you don't have a power point at the gate. You plug a transformer into a house outlet and run a low-voltage cable (usually 12V or 24V) out to the gate.The low voltage setup is a favorite for DIY installations because it typically does not require a licensed electrician for the cable run.
Installation Benefits: Unlike 240V mains power, which requires strict adherence to electrical regulations—such as burying orange conduit 600mm deep—low voltage cable can often be run in standard conduit just 50mm to 100mm below the surface.
The "Voltage Drop" Factor: The main drawback is voltage drop over long distances. To ensure your motor receives enough power to operate reliably, follow these wiring guidelines:
Up to 40 Meters: A standard 3mm (16 amp) cable is sufficient.
40 to 60 Meters: We recommend upgrading to a 6mm (36 amp) cable to reduce resistance and voltage drop.
Over 60 Meters: We generally do not recommend running low voltage power beyond 60 meters, as the motor performance will significantly degrade.
Solar Power Setup
Solar is a fantastic solution for remote properties, but it is the most expensive and least reliable option compared to wired power. We recommend solar only if running a power cable to the gate is physically impossible.
To get a reliable solar system, keep these factors in mind:
Energy Management: You must minimize high-drain accessories (like constant-on Wi-Fi bridges or heavy lighting) to prevent the batteries from going flat. Adding additional solar panels can help the batteries recover faster during the day.
Brand Differences in Power Consumption:
BFT (High Efficiency): BFT systems use a "smart sleep" mode that shuts down the motor and accessories when not in use. The system only wakes up when triggered by a remote, making it one of the best for small battery setups.
Beninca, Merlin, and Sentsys: These brands typically offer a standard setup where the motor stays "active." While this makes it much easier to connect constant-power devices like keypads or GSM openers, it requires a larger battery bank and more solar panels to keep up with the constant draw.
| Feature | 240V Mains | Low Voltage | Solar Power |
| Reliability | Highest | High | Medium |
| Installation Cost |
Low |
Low (DIY Friendly) | High (Panels/Batteries) |
| Maintenance | Low | Low | Medium (Battery replacement) |
| Best For | Standard Residential | Long Driveways (DIY) | Rural/Off-grid |
If you still have any more questions about our gate motors, feel free to reach out to us here
Contact UsBy: Jaap Went
Small Sliding Gate (Up to 450kg)
Designed for lightweight gates and residential use, these motors are ideal for aluminium or light steel gates with relatively low daily usage.
Best for:
- Residential gates
- Small driveway gates
- Light aluminium/steel gates
**Phasing Out
Control Board:
CP.B24-SW
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 43kgf
Max Gate Weight: 400kg
Max Gate Length: N/A
Max Speed: 11m/min
Warranty Period: 2.5 Years
Limit Switches: Electromechanical
Protection Rating: IP44
Control Board: CP.B24-D120
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 43kgf
Max Gate Weight: 450kg
Max Gate Length:
N/A
Max Speed: 11m/min
Warranty Period: 2.5 Years
Limit Switches:
Electromechanical
Protection Rating: IP44

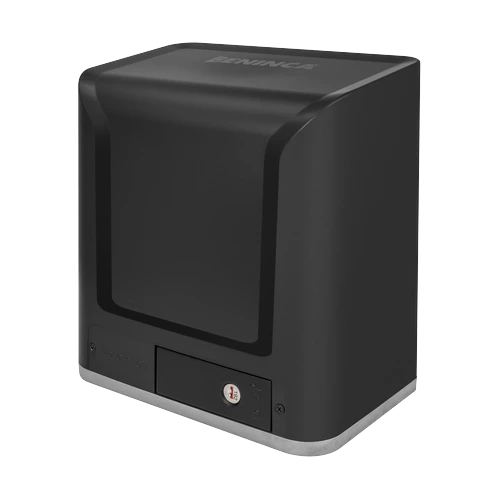

Beninca WOLF 424
**Coming Soon
Control Board: TBD
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 43kgf
Max Gate Weight: 450kg
Max Gate Length:
N/A
Max Speed: 11m/min
Warranty Period: 2.5 Years
Limit Switches: Magnetic
Protection Rating: IP44

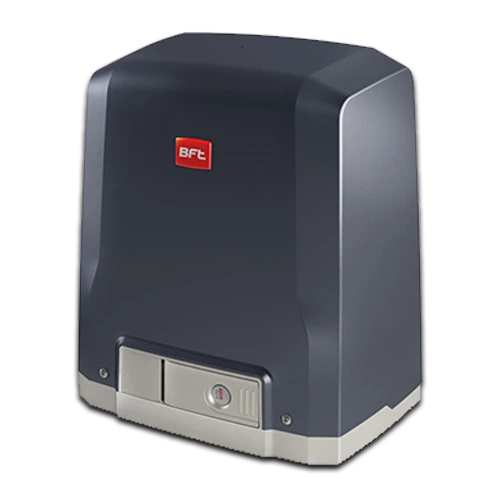

BFT Deimos BT A400
**Discontinued
Control Board:
Hamal 400
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V AC*
Max Thrust: 56kgf
Max Gate Weight: 400kg
Max Gate Length:
N/A
Max Speed: 12m/min
Warranty Period: 2 Years
Limit Switches:
Electromechanical
Protection Rating: IP24
**Discontinued
Control Board:
Merak 400
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V AC*
Max Thrust: 56kgf
Max Gate Weight: 400kg
Max Gate Length:
N/A
Max Speed: 12m/min
Warranty Period: 2 Years
Limit Switches: Magnetic
Protection Rating: IP44
**New
Control Board: Hamal BT A
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 56kgf
Max Gate Weight: 400kg
Max Gate Length:
N/A
Max Speed: 16m/min
Warranty Period: 2 Years
Limit Switches:
Electromechanical
Protection Rating: IP24
**New
Control Board: Merak BT A
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 56kgf
Max Gate Weight: 400kg
Max Gate Length:
N/A
Max Speed: 16m/min
Warranty Period: 2 Years
Limit Switches: Magnetic
Protection Rating: IP44

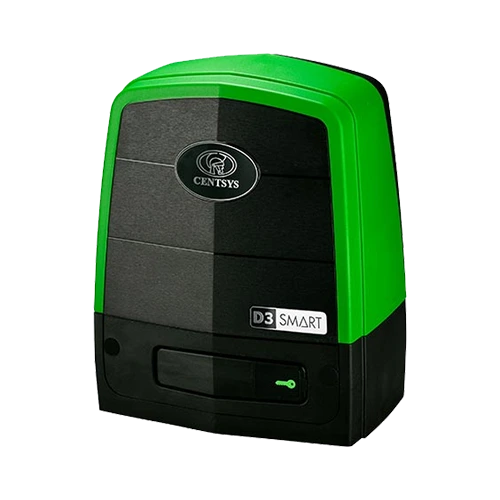

Centsys D3 Smart
Control Board: D3 Smart
Input Voltage: 240V*
Motor Voltage: 12V DC
Accessories Voltage: 12V DC
Max Thrust: 17kgf
Max Gate Weight: 300kg
Max Gate Length: 10m
Max Speed: 24m/min
Warranty Period: 2 Years
Limit Switches: None
Protection Rating: IP55
Medium Sliding Gate (Up to 600kg)
Medium-duty motors offer a balance between performance and affordability, making them suitable for larger residential gates or light commercial use.
Best for:
Wider residential driveways
Heavier steel gates
Moderate daily usage
**Phasing Out
Control Board:
CP.B24-SW
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 72kgf
Max Gate Weight: 600kg
Max Gate Length: N/A
Max Speed: 11m/min
Warranty Period: 2.5 Years
Limit Switches: Electromechanical
Protection Rating: IP44
Control Board:
CP.B24Turbo
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 33kgf
Max Gate Weight: 600kg
Max Gate Length:
N/A
Max Speed: 25m/min
Warranty Period: 2.5 Years
Limit Switches:
Electromechanical
Protection Rating: IP44
Beninca WOLF 624
**Coming Soon
Control Board: TBD
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 72kgf
Max Gate Weight: 600kg
Max Gate Length:
N/A
Max Speed: 14m/min
Warranty Period: 2.5 Years
Limit Switches: Magnetic
Protection Rating: IP44
BFT Deimos BT A600
**Discontinued
Control Board:
Hamal 600
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V AC
Max Thrust: 85kgf
Max Gate Weight: 600kg
Max Gate Length:
N/A
Max Speed: 12m/min
Warranty Period: 2 Years
Limit Switches:
Electromechanical
Protection Rating: IP24
BFT Deimos Ultra BT A600
**Discontinued
Control Board:
Merak 600
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V AC*
Max Thrust: 85kgf
Max Gate Weight: 600kg
Max Gate Length:
N/A
Max Speed: 12m/min
Warranty Period: 2 Years
Limit Switches: Magnetic
Protection Rating: IP44
**New
Control Board: Hamal BT A
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 85kgf
Max Gate Weight: 600kg
Max Gate Length:
N/A
Max Speed: 14m/min
Warranty Period: 2 Years
Limit Switches:
Electromechanical
Protection Rating: IP24
**New
Control Board: Merak BT A
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 85kgf
Max Gate Weight: 600kg
Max Gate Length:
N/A
Max Speed: 14m/min
Warranty Period: 2 Years
Limit Switches: Magnetic
Protection Rating: IP44

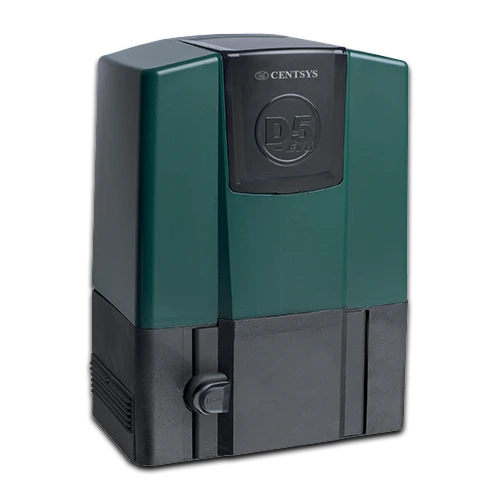

Centsys D5 Evo
**Discontinued
Control Board:
D5 Evo
Input Voltage: 240V*
Motor Voltage: 12V DC
Accessories Voltage: 12V DC
Max Thrust: 17kgf
Max Gate Weight: 500kg
Max Gate Length: 100m
Max Speed: 22m/min
Warranty Period: 2 Years
Limit Switches: Magnetic
Protection Rating: IP55

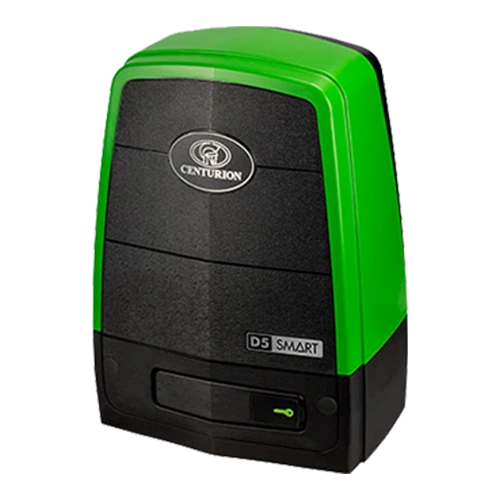

Centsys D5 Smart
**Discontinued
Control Board:
DX Smart
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 30kgf
Max Gate Weight: 500kg
Max Gate Length: 100m
Max Speed: 35m/min
Warranty Period: 2 Years
Limit Switches: None
Protection Rating: IP55

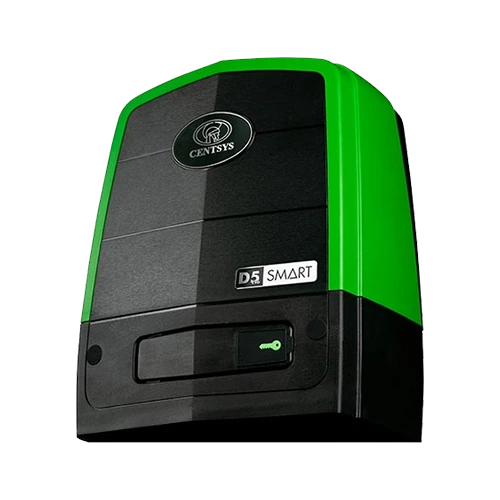

Centsys D5 Evo Smart
Control Board: D5 Evo Smart
Input Voltage: 240V*
Motor Voltage: 12V DC
Accessories Voltage: 12V DC
Max Thrust: 30kgf
Max Gate Weight: 500kg
Max Gate Length: 20m
Max Speed: 24m/min
Warranty Period: 2 Years
Limit Switches: None
Protection Rating: IP55
Large Sliding Gate (1000kg and above)
Built for strength and durability, these motors are designed for heavier gates and more frequent operation.
Best for:
Commercial properties
Large residential gates
High usage environments

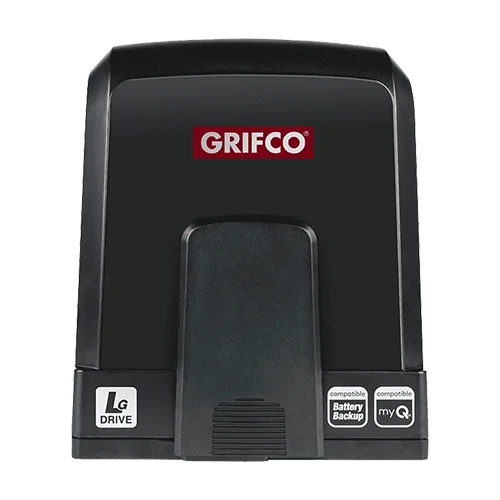

Grifco LG-Drive
Control Board:
041A0290
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 63kgf
Max Gate Weight: 1000kg
Max Gate Length: 12m
Max Speed: 18.6m/min
Warranty Period: 3 Years
Limit Switches: Magnetic
Protection Rating: IP44
Control Board:
TigerTech Board
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 122kgf
Max Gate Weight: 1000kg
Max Gate Length: 8m
Max Speed: 15.6m/min
Warranty Period: 1 Year
Limit Switches: Magnetic
Protection Rating: IP44
Control Board:
CP.B24Turbo
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 56kgf
Max Gate Weight: 1200kg
Max Gate Length:
N/A
Max Speed: 25m/min
Warranty Period: 2.5 Years
Limit Switches:
Electromechanical
Protection Rating: IP44

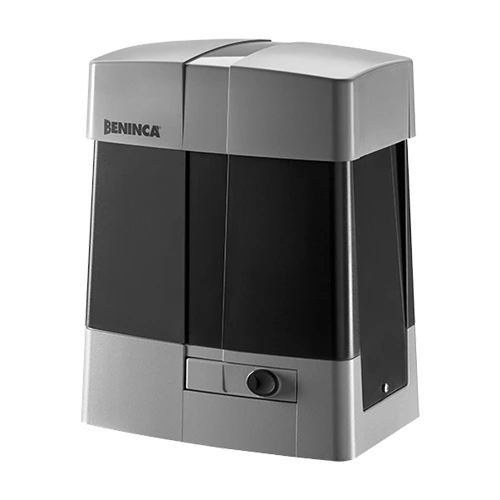

Beninca BULL 1524SE
Control Board: CP.B24-D120
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 93kgf
Max Gate Weight: 1500kg
Max Gate Length: N/A
Max Speed: 11.7m/min
Warranty Period: 2.5 Years
Limit Switches:
Electromechanical
Protection Rating: IP44
Beninca BULL 20HE
Control Board: CP.BULL20-HE
Input Voltage: 240V
Motor Voltage: 240V AC
Accessories Voltage: 24V/240V AC
Max Thrust: 112kgf
Max Gate Weight: 2000kg
Max Gate Length:
N/A
Max Speed: 10.5m/min
Warranty Period: 2.5 Years
Limit Switches:
Electromechanical
Protection Rating: IP44

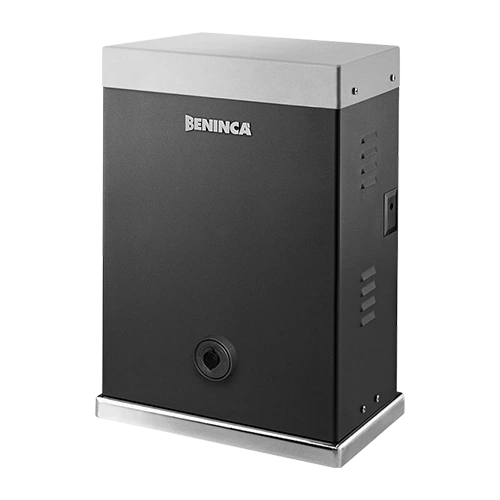

Beninca BUFFALO 160OTI
Control Board: CP.BUFFALO-DRIVE
Input Voltage: 240V
Motor Voltage: 240V AC
Accessories Voltage: 24V/240V AC
Max Thrust: 1291kgf
Max Gate Weight: 16000kg
Max Gate Length:
N/A
Max Speed: 8.4m/min
Warranty Period: 2.5 Years
Limit Switches:
Electromechanical
Protection Rating: IP44
Control Board: CP.Bison OTI
Input Voltage: 240V
Motor Voltage: 240V AC
Accessories Voltage: 24V/240V AC
Max Thrust: 254kgf
Max Gate Weight: 2500kg
Max Gate Length:
N/A
Max Speed: 36m/min*
Warranty Period: 2.5 Years
Limit Switches: Electromechanical
Protection Rating: IP44
Beninca BISON 35OTIL
Control Board: CP.Bison OTIL
Input Voltage: 240V
Motor Voltage: 240V AC
Accessories Voltage: 24V/240V AC
Max Thrust: 306kgf
Max Gate Weight: 3500kg
Max Gate Length:
N/A
Max Speed: 10.5m/min
Warranty Period: 2.5 Years
Limit Switches: Electromechanical
Protection Rating: IP44

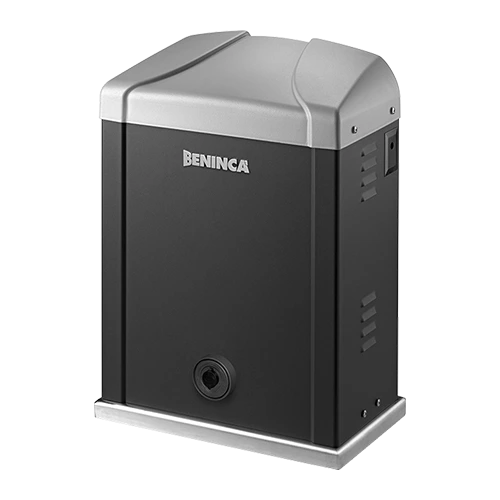

Beninca BISON 35OTI
Control Board: CP.Bison OTI
Input Voltage: 400V
Motor Voltage: 400V AC
Accessories Voltage: 24V/240V AC
Max Thrust: 306kgf
Max Gate Weight: 3500kg
Max Gate Length:
N/A
Max Speed: 19m/min
Warranty Period: 2.5 Years
Limit Switches: Electromechanical
Protection Rating: IP44

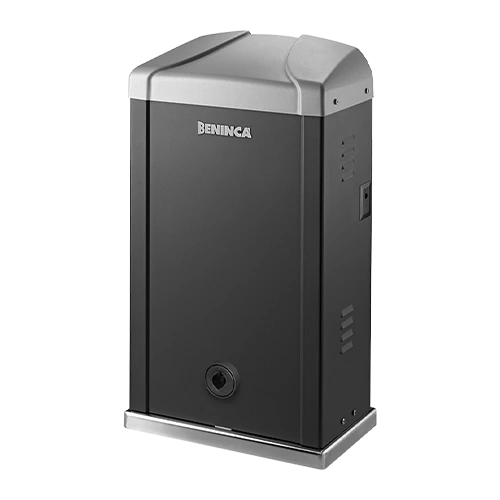

Control Board: CP.Bison OTI
Input Voltage: 400V
Motor Voltage: 400V AC
Accessories Voltage: 24V/240V AC
Max Thrust: 510kgf
Max Gate Weight: 4500kg
Max Gate Length: N/A
Max Speed: 19m/min
Warranty Period: 2.5 Years
Limit Switches: Electromechanical
Protection Rating: IP44

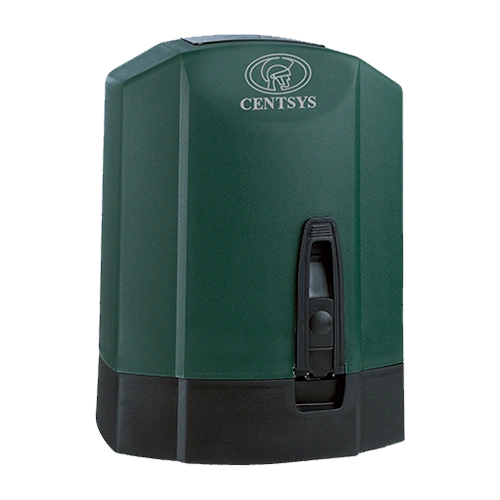

Centsys D10 Turbo
**Discontinued
Control Board:
D10 Turbo
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 15kgf
Max Gate Weight: 1000kg
Max Gate Length: 50m
Max Speed: 50m/min**
Warranty Period: 2 Years
Limit Switches: Magnetic
Protection Rating: IP24

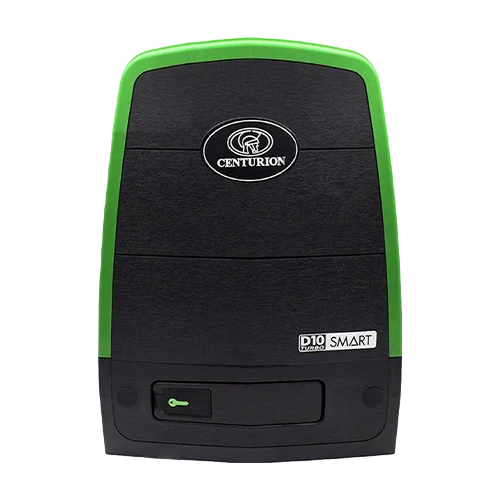

Centsys D10 Turbo Smart
**Currently Unavailable in Australia
Control Board:
DX Smart
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V AC*
Max Thrust: 24kgf
Max Gate Weight: 250kg **
Max Gate Length: 50m
Max Speed: 45m/min**
Warranty Period: 2 Years
Limit Switches: None
Protection Rating: IP54
**D10 Smart is recommend for gate over 500kg

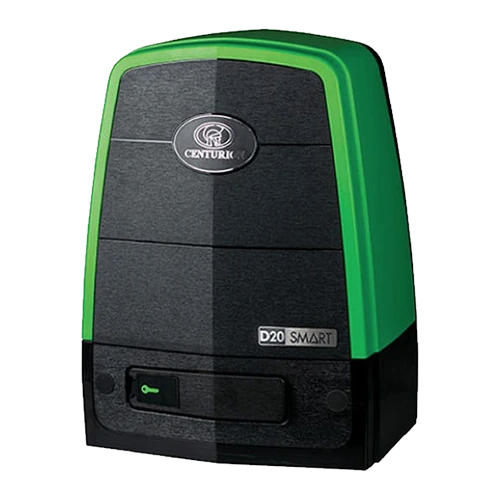

Centsys D20 Smart
**New
Control Board:
DX Smart
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 52kgf
Max Gate Weight: 2000kg
Max Gate Length: 25m
Max Speed: 18m/min
Warranty Period: 2 Years
Limit Switches: None
Protection Rating: IP54

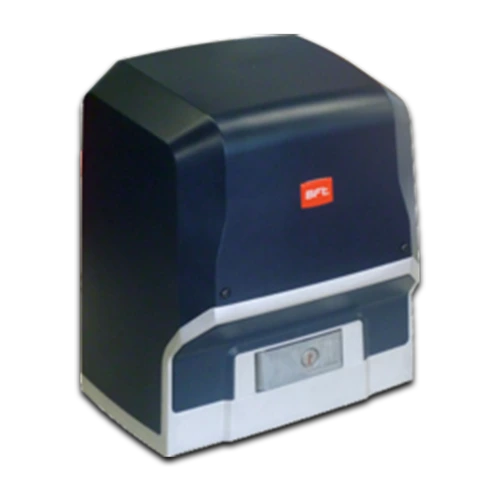

BFT Ares BT A1000
**Discontinued
Control Board:
Hamal 1000
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V AC*
Max Thrust: 85kgf
Max Gate Weight: 1000kg
Max Gate Length: N/A
Max Speed: 9m/min
Warranty Period: 2 Years
Limit Switches:
Electromechanical
Protection Rating: IP24
**Discontinued
Control Board:
Merak 1000
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V AC*
Max Thrust: 85kgf
Max Gate Weight: 1500kg
Max Gate Length: N/A
Max Speed: 9m/min
Warranty Period: 2 Years
Limit Switches: Magnetic
Protection Rating: IP44

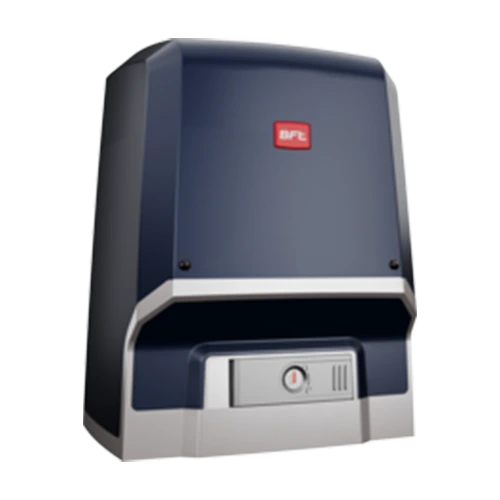

BFT Ares BT B1000
**New
Control Board: Hamal BT A
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 56kgf
Max Gate Weight: 1000kg
Max Gate Length: N/A
Max Speed: 12m/min
Warranty Period: 2 Years
Limit Switches:
Electromechanical
Protection Rating: IP24

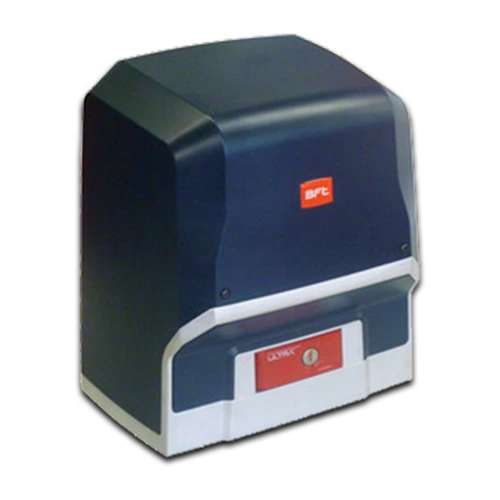

BFT Ares Ultra BT B1000
**New
Control Board: Merak BT A
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 56kgf
Max Gate Weight: 1000kg
Max Gate Length: N/A
Max Speed: 12m/min
Warranty Period: 2 Years
Limit Switches: Magnetic
Protection Rating: I44
BFT Ares BT A1500
**Discontinued
Control Board:
Hamal 1000
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V AC*
Max Thrust: 99kgf
Max Gate Weight: 1500kg
Max Gate Length: N/A
Max Speed: 9m/min
Warranty Period: 2 Years
Limit Switches:
Electromechanical
Protection Rating: IP24
**Discontinued
Control Board:
Merak 1000
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V AC*
Max Thrust: 99kgf
Max Gate Weight: 1500kg
Max Gate Length: N/A
Max Speed: 9m/min
Warranty Period: 2 Years
Limit Switches: Magnetic
Protection Rating: IP44
BFT Ares BT B1500
**New
Control Board: Hamal BT A
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 85kgf
Max Gate Weight: 1500kg
Max Gate Length: N/A
Max Speed: 12m/min
Warranty Period: 2 Years
Limit Switches:
Electromechanical
Protection Rating: IP24

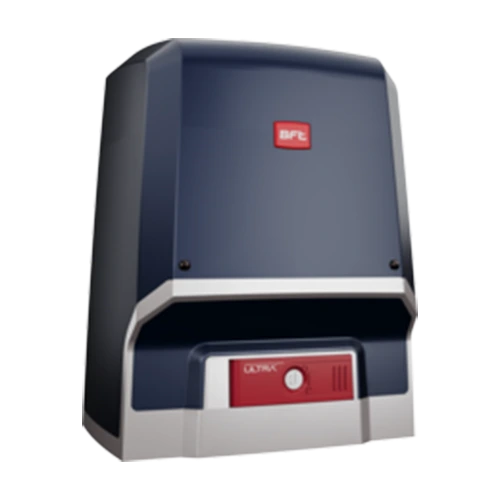

BFT Ares Ultra BT B1500
**New
Control Board: Merak BT A
Input Voltage: 240V*
Motor Voltage: 24V DC
Accessories Voltage: 24V DC
Max Thrust: 85kgf
Max Gate Weight: 1500kg
Max Gate Length: N/A
Max Speed: 12m/min
Warranty Period: 2 Years
Limit Switches: Magnetic
Protection Rating: IP44
BFT Icaro Veloce Smart AC A1000
Control Board: LEO B CBB
Input Voltage: 240V
Motor Voltage: 240V AC
Accessories Voltage: 24V/240V AC
Max Thrust: 81kgf
Max Gate Weight: 1000kg
Max Gate Length: N/A
Max Speed: 25m/min
Warranty Period: 2 Years
Limit Switches: Electromechanical
Protection Rating: IP24

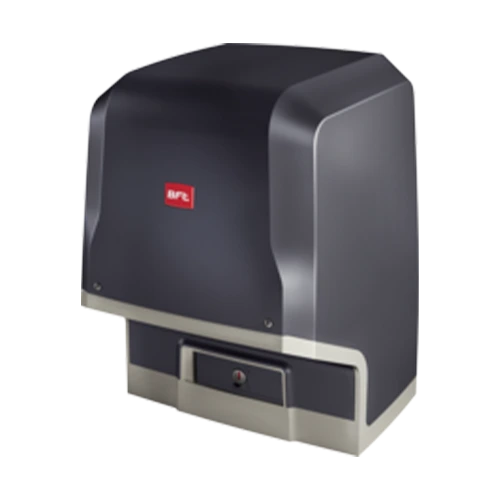

BFT Icaro Smart AC A2000
Control Board:
LEO B CBB
Input Voltage: 240V
Motor Voltage: 240V AC
Accessories Voltage: 24V/240V AC
Max Thrust: 113kgf
Max Gate Weight: 2000kg
Max Gate Length: N/A
Max Speed: 9m/min
Warranty Period: 2 Years
Limit Switches: Electromechanical
Protection Rating: IP24
