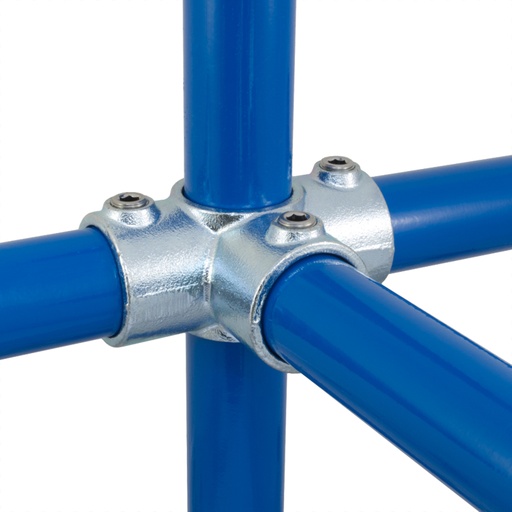

The TigerClamp 176 Series Side Outlet Tee is a versatile fitting designed to connect 32NB pipes in railing systems. This tee fitting features side outlets, allowing for the creation of various angles and configurations in your railing design. The high-quality construction ensures durability and strength, providing a reliable solution for your railing needs. With its easy installation and compatibility with 32NB pipes, this side outlet tee offers flexibility and convenience. Whether for residential or commercial applications, the TigerClamp Side Outlet Tee is a trusted choice for creating functional and stylish railing systems.

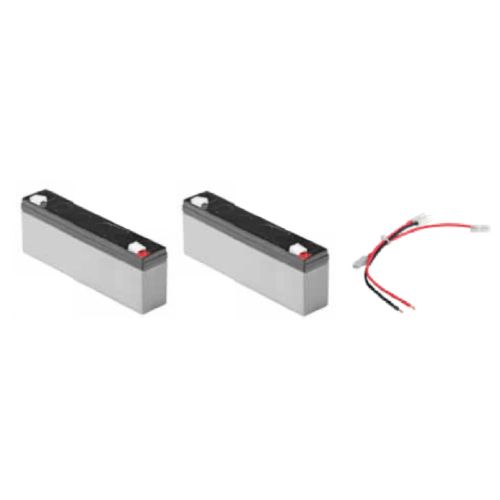

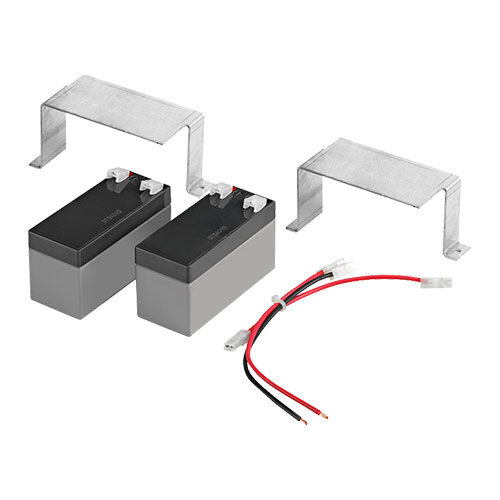

The Beninca battery back up 1.3Ah 12VDC battery backup KIT suitable for BULL424 SW, BULL 624 SW, Brainy 24+

& Hybra 24. Brackets only for Brainy24+ and Hybra 24.

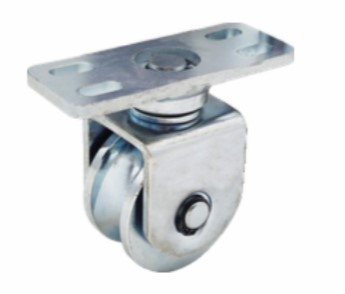

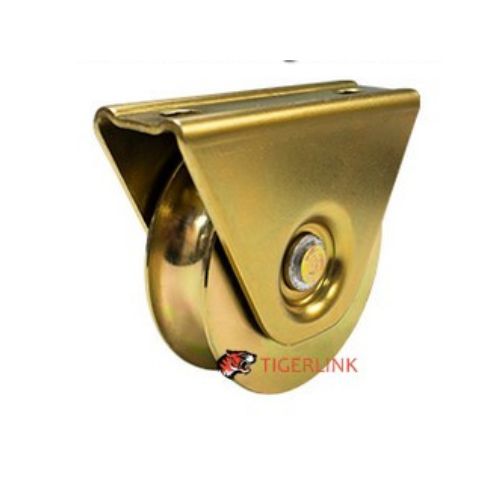

The  Steel Sliding Gate 360° Turn Wheel is a durable and versatile solution for your sliding gate system. With its U-groove design and 60mm external diameter, this wheel allows for smooth and effortless 360° turning motion. The double-bearing system ensures reliable performance and minimizes friction. Crafted from high-quality steel, this wheel is built to withstand heavy loads and provide long-lasting durability. Upgrade your sliding gate with the  Steel Sliding Gate 360° Turn Wheel for enhanced functionality and convenience.

Hold weight up to 180kg

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

• Sliding gate wheel
• Measuring tape
• Drill and drill bits
• Screws and bolts
• Wrench or screwdriver

Steps for Installation:

1. Prepare the Gate and Track:
   • Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
   • The track should be level and secure to ensure smooth operation.
2. Determine the Wheel Placement:
   • Decide where the wheel brackets will go on the gate. Typically, the wheels should be placed at the bottom of the gate. Depending on the gate size.
   • The wheel’s placement is important for proper weight distribution and gate stability.
3. Mark the Drill Holes:
   • Hold the wheel brackets against the gate at the desired position.
   • Use a measuring tape to ensure the placement is even and at the correct height.
   • Mark the holes where the screws or bolts will go to secure the wheels.
4. Drill the Holes:
   • Drill holes at the marked points on the gate, making sure the holes are large enough for the screws or bolts provided in your wheel kit.
   • If you’re installing a single wheel, the hole placement should be centered along the gate's width.
5. Attach the Wheel Bracket:
   • Secure the wheel bracket to the gate using the screws or bolts.
   • Tighten them properly to ensure the bracket is secure. Be sure the wheel can rotate freely once attached.
6. Install the Wheel:
   • If the wheel is separate from the bracket, slide the wheel into its bracket or mounting system.
   • Tighten any screws or bolts holding the wheel in place, ensuring it rotates easily and is properly aligned.
7. Test the Gate:
   • Test the sliding gate by moving it along the track.
   • Check that the wheels glide smoothly without any obstruction or resistance. The gate should be stable and move freely.
8. Adjust if Necessary:
   • If the gate isn’t sliding smoothly, check the alignment of the wheels and track. You might need to adjust the wheel height or ensure that the track is level.
   • Make sure the wheels are aligned with the gate and track to avoid any friction.

Try not to weld them onto the sliding gate frame it will be a nightmare to replace them later

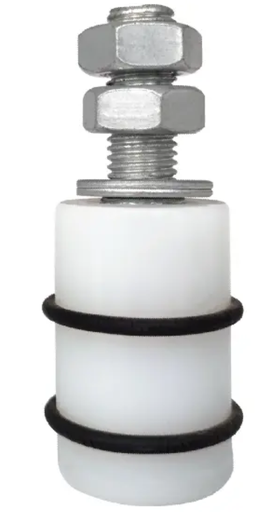

The Wh132 Top Guide Roller for Sliding Gate is a high-quality accessory designed to enhance the performance of sliding gates. With a size of 40x60mm, this guide roller ensures smooth and effortless operation for your gate. It is made of durable materials to withstand daily use and environmental conditions. The Wh330 Guide Roller is specifically designed to be installed on top posts, providing reliable guidance and support. The black color adds a sleek and modern touch to your gate. Upgrade your sliding gate with this top guide roller for improved functionality and convenience.

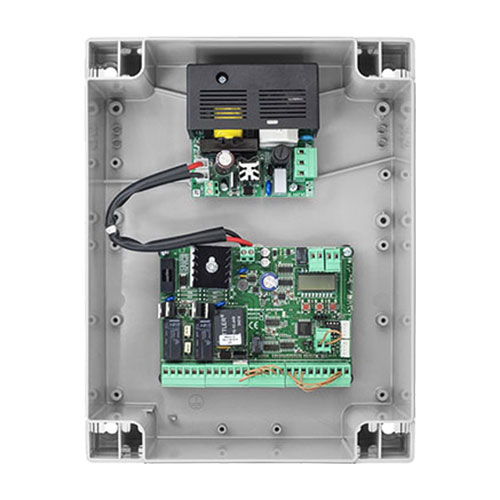

BRAINY24 PLUS

APPLICATION

1 or 2 actuators for swing gates, opposed sliding gates, and industrial folding doors with a maximum of 2 sections

CONTROL UNIT POWER SUPPLY

115 or 230 Vac (selectable) 50/60Hz

MOTORS POWER SUPPLY

24 Vdc / 240 W + 240 W

MAIN FUNCTIONS

Integrated LCD display | Integrated radio receiver 433.92 MHz 64 codes and 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code | Removable terminal boards | Separate limit switch inputs for each motor | Open, close, step-by-step and pedestrian inputs | Separate opening-closing and closing photocell inputs | Stop input | Input for N.C. or 8K2 sensitive edge | Encoder Input for 24 Vdc hydraulic motors | Output for 12 Vdc electric lock | 2 outputs configurable as open gate indicator, second radio channel, courtesy light, zone light or photocell testing, flashing light, open gate alarm, NC input alarm | Output for connecting flashing light | Autoset of operating parameters | Separate electronic torque adjustment for each motor | Separate electronic speed adjustment for each motor | Anti-crushing safety through amperometric detection and encoder management | Separate slowdowns for each motor in opening and closing phases | Set up for connection to KNX systems via X.BE card (optional) | Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory | Advantouch system to configure parameters and manage radio transmitters | Number of manoeuvres | Programming access password | Maintenance warning | Built-in battery charger

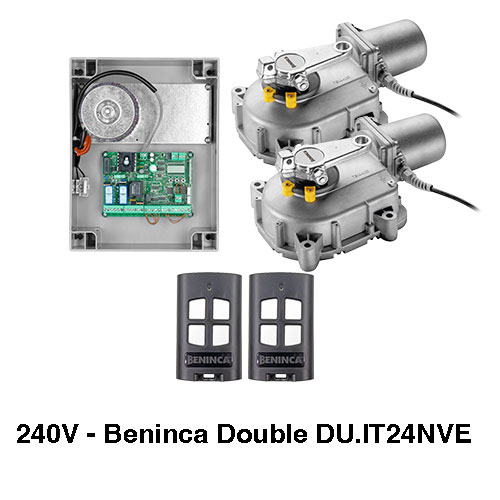

Beninca Underground Double Swing Gate Motor DU.IT 24NVE Double KIT

Electromechanical underground operator

Product Details:

• Irreversible 24 Vdc electromechanical geared motor for intensive use
• The encoder device ensures maximum safety and precision in the gate moving phases
• Amperometric sensor obstacle detection system to prevent crushing
• Optional battery-powered operation
• Full metal mechanics and built-in mechanical stop.
• Suitable for gate leafs up to 3.5m

Donwload installation DU.IT 24NVE

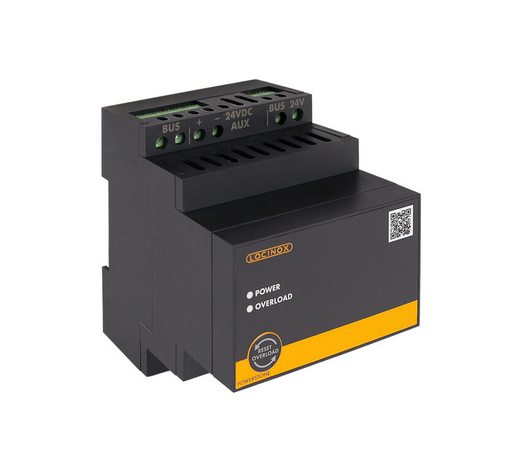

The Safety DC Power 24V 60W is a reliable power supply specifically designed for motorized electrical drop bolts. This safety power unit ensures a stable and consistent power output of 24V, providing the necessary energy to operate the drop bolt effectively. With a power rating of 60W, it delivers sufficient power to ensure smooth and reliable operation of the motorized drop bolt, enhancing the overall security of your gate system. The  Safety DC Power is built with safety features, including overload and short circuit protection, to prevent any electrical damage or accidents. Upgrade your motorized drop bolt system with the Safety DC Power for reliable and secure gate operation.

• Mounting on DIN-rail or directly
• Input: 110-240 VAC, 50-60Hz, 1.2A maximum
• Output: +24V DC, 2.5A maximum, 60W
• Resettable overload indicator
• Auxiliary 24V DC output available

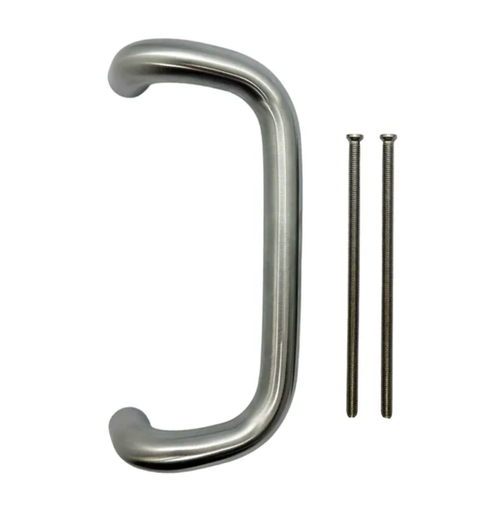

Swing Gate Stainless steel PULL and Push PLATE with Handle

LOCKTON PPP-SET-SS - Contains one of each Stainless Steel "Push" Plate & "Pull" Plate.

Fixing holes on each plate allows handles to be mounted either back to back or at different heights if needed.

Supplied in a box with fixing screws. Often also used to cover existing holes & or damage to doors.

PRODUCT SPECIFICATION

• Material: Stainless Steel
• Thickness: 1.5mm each
• Dimensions: 300mm x 100mm each
• Pull Handle Protrusion: 60mm
• Pack Quantity: 2 x Plates (1 x Push, 1 x Pull)
• 19mm Diameter Pull Handle
• Fixing Screws provided

Swing Gate OFFSET Pull D Handle to suit 60mm Backset Locks

Offset  "D" Handle  - suits 60mm Mortice Lock.

Often used with Access Control and Electric Strikes. When used with a plate with a cylinder hole it still allows access to the cylinder.

PRODUCT SPECIFICATION

• Material: Solid Brass
• Handing: Non-Handed
• 5 Year Warranty
• Clearance: 44mm (from rear of handle to door)
• Handle Diameter: 16mm
• Mounting Screw Distance: 160mm
• Screw Thread: M5
• Supplied with 2 x Mounting Screws

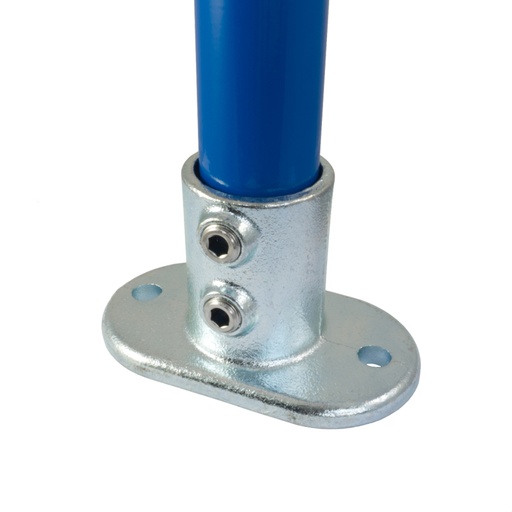

The TigerClamp 132 E60 Series Base Foot Flange is a reliable and robust pipe fitting designed to provide a secure base for 50NB pipes with a diameter of 60mm. This base foot flange is used to attach and support pipes, ensuring stability and structural integrity in various applications. It features a durable construction and is suitable for both indoor and outdoor use. The flange is easy to install and offers a secure connection for your pipe system. With its high-quality design and functionality, the TigerClamp Base Foot Flange is an essential component for any pipe installation project.
