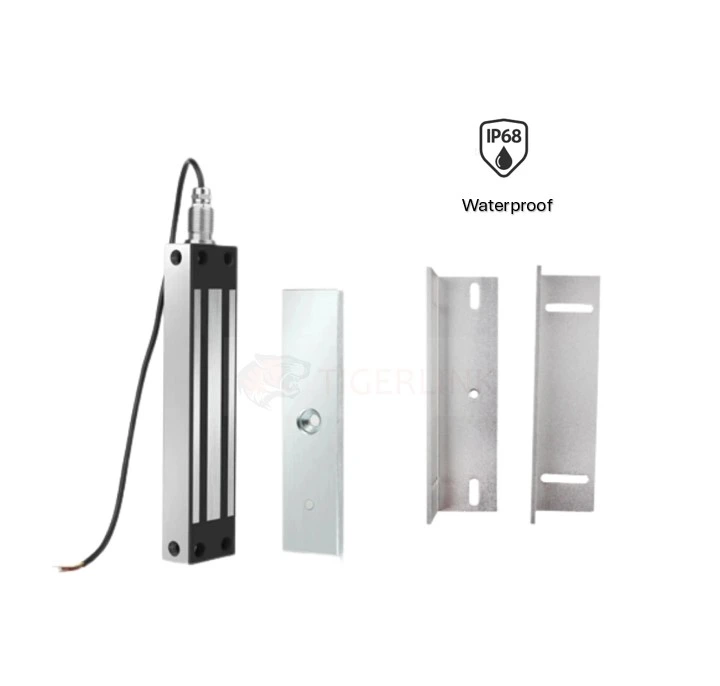

Stainless Steel Electromagnetic Lock 280Kg 12V -24V DC with ZL Bracket - Waterproof - IP68

Stainless steel Electromagnetic Lock 280Kg 12V - 24V DC with ZL Bracket

This magnetic electric lock consists of a powerful electromagnet and an armature plate designed for access control door systems. The electromagnet is mounted to the door frame while the armature plate is installed on the door. When power is supplied, the electromagnet creates a strong magnetic force that attracts the armature plate, securely keeping the door closed. When the power is switched off, the magnetic force releases and the door unlocks.

This lock is suitable for a variety of door types including wooden doors, glass doors, metal doors, and fire-rated doors.

Features

• High-Quality Material: Constructed from durable stainless steel with IP68 waterproof rating for long-lasting performance.

• Anti-Magnetic Design: Built with wear-resistant materials to ensure reliable and stable operation.

• Strong Holding Force: Provides up to 280kg (600 lbs) of holding force for secure door locking.

Specifications

• Lock Mode: NC (Normally Closed)

• Operating Voltage: DC 12V-24V DC

• Working Current: 500mA (12V)

• Material: Stainless Steel 304

• Holding Force: 280kg (600 lbs)

• 4 Wires, 12V & 24V adjustable

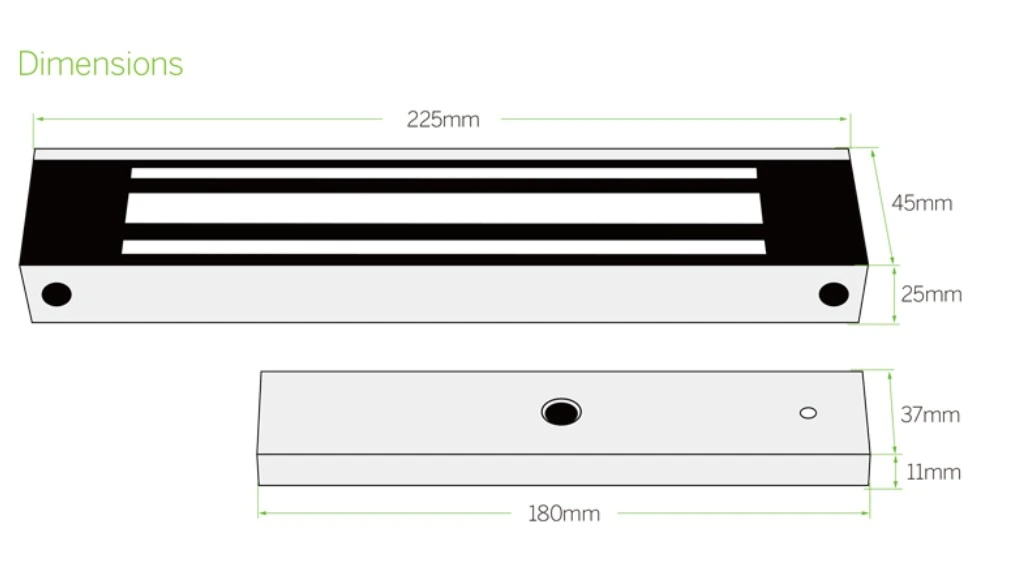

Dimensions:

• Lock Body: Approx. 225 × 45 × 25 mm

• Armature Plate: Approx. 180 × 37 × 11 mm

Package Weight: Approx. 2.5kg

Package Includes

• 1 × Magnetic Door Lock

• 1 × ZL Mounting bracket Kit

• 1 × User Manual

•


Product Brochure
