The Rising Hinges, also known as up-hill hinges or heavy-duty strap hinges, are designed for gates weighing up to 680 kg. These hinges are specifically engineered to provide reliable and smooth operation for larger and heavier gates. With their robust construction and heavy-duty design, they can withstand the weight and stress of heavy gates, ensuring long-lasting durability and functionality. The rising feature allows the gate to clear uneven surfaces or obstacles when opening or closing. Whether you have a commercial or industrial gate, the Rising Hinges offer the strength and performance needed to support heavy loads.
Suitable for motorised, uphill or heavy gates
• For square-posted, weld-on installations
• Zinc electroplated external components

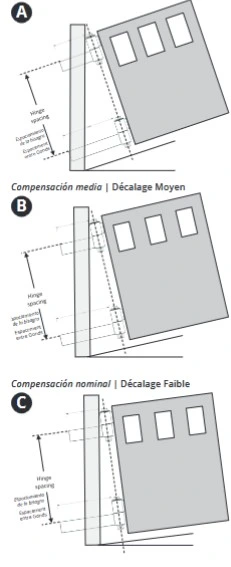

• Swings 180º , fixed gap variance 13mm (1/2")
• Leaf straps can be cut to length
• Load rating per gate: 1,360kg (3,000 lbs)
• Maximum gate weight: 680kg (1,500 lbs)
| Gate Application | Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
| Gate Type | Non Self-Closing |
| Gate Material | Steel/Ornamental Iron |
| Approx Gate Size | 2m H x 3m W - (7ft x 10ft) |
| Gate Frame/Post Shape | Square-to-Square |
| Min Post Size | 40mm+ (1½") |
| Ideal Gate Gap | Fixed at 13mm (½") |
| Fixing Method | Weld-On |
| Colour/Finish | Zinc |
