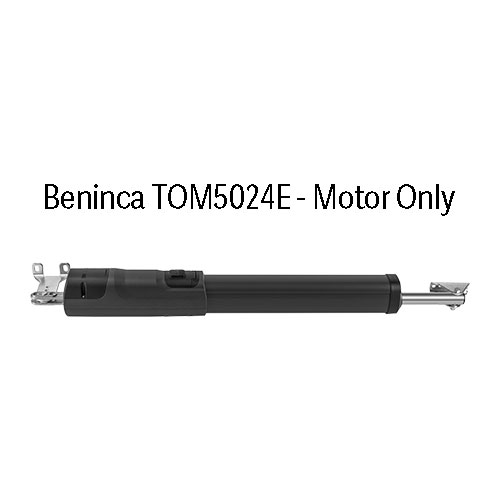

Beninca Swing Gate Motor TOM5024E Motor only
The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.
Irreversible 24 Vdc electromechanical geared motor for intensive use, equipped with encoder | The TRUST24 control unit ensures power consumption in standby mode of < 0.8 W |The encoder device ensures maximum safety and precision in the gate moving phases | Amperometric sensor obstacle detection system to prevent crushing | Optional battery powered operation | Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft | Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets | The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum | The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator | The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions | Easy access release from above
--
24 Vdc | intensive use
• Irreversible 24 Vdc electromechanical gear motor for intensive use equipped with encoder
• The TRUST24 control unit ensures power consumption in standby mode of < 0.8 W
• The encoder guarantees maximum safety and precision while the gate is moving
• Amperometric sensor obstacle detection system to prevent crushing
• Possibility of battery operation
Additional information
| Weight | 9.4 kg |
|---|---|
| Motor Voltage | 24 volts DC |
| Standby Current | 0mA |
| Maximum Current | 5.5A |
| Motor Power | 89W |
| Maximum Thrust | 1500Nm |
| Opening Time | 19" |
| Maximum Gate Width | 5000mm |
| Duty Cycle | 80% |

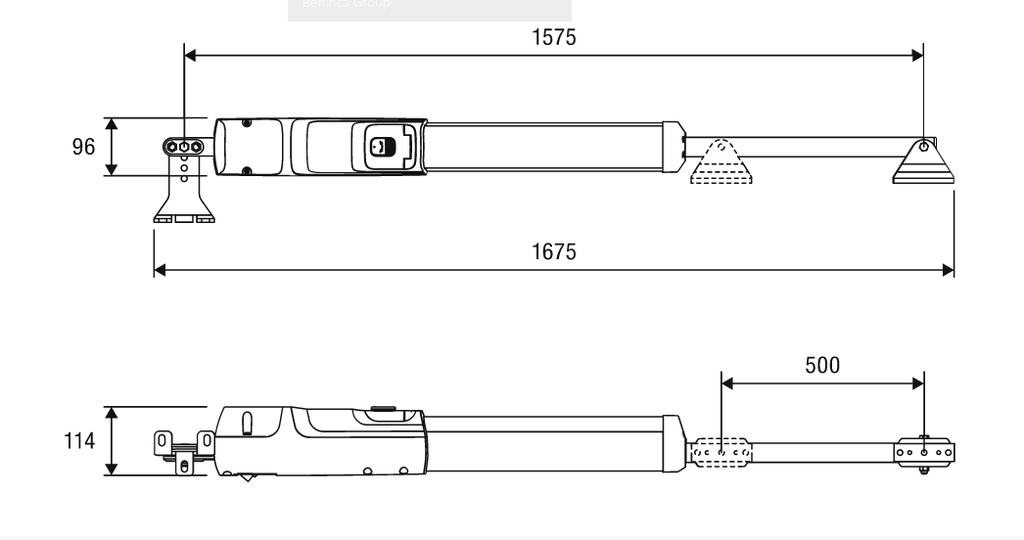

| Height (mm) | 114mm |
| Width (mm) | 96mm |
| Length (mm) | 1575mm |
| Weight (kg) | 9.4 Kg |
| IP Rating | IP44 |
