Swing Gate Handle Square Plate OFFSET D HANDLE with Cylinder Hole

Offset Fixed "D" Handle Kit - suits 60mm Mortice Lock.

Kit Components

• 1 x LOCKTON Art. D-OFFSET-SC - Offset Fixed "D" Handle
• 1 x  LOCKTON Art. SQ-04V-SCP - Square End Furniture Plate w/ Cylinder Hole

PRODUCT SPECIFICATION

Plate Specifications

• Material: Solid Brass
• Dimensions (L x W x D): 165 x 46 x 18mm
• Mounting Screw Spacing: 150mm

Handle Specifications

• Material: Solid Brass
• Handing: Non-Handed
• 10 Year Warranty (*)
• Clearance: 44mm (from rear of handle to door)
• Handle Diameter: 16mm
• Mounting Screw Spacing: 160mm
• Screw Thread: M5
• Supplied with 2 x Mounting Screws

The Locinox Gate Handle is a versatile handle designed for use with gates, offering both fixed and rotating operation. Made from high-quality aluminium, this handle is built to withstand outdoor conditions and provide reliable performance.

The Locinox handle features a unique design that allows you to choose between fixed or rotating operation, depending on your specific needs. In the fixed position, the handle functions as a traditional handle, providing a secure grip for opening and closing the gate. In the rotating position, the handle can rotate freely, making it convenient for gates that require frequent access without the need to continuously operate the handle.

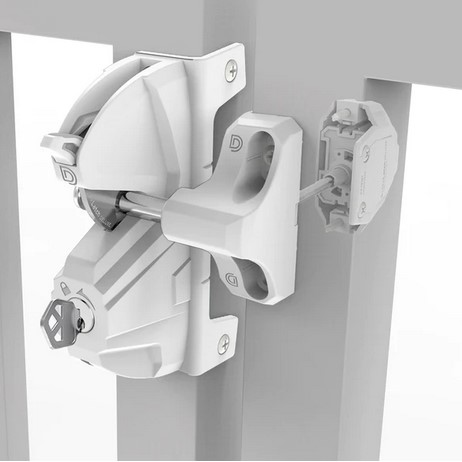

Introducing the FK429 LokkLatch Deluxe S3 Security Gate Latch, Keys Alikein White – an advanced and secure solution for your gate access needs. Engineered for durability and ease of use, this security gate latch provides a reliable and key-controlled access point for your gates.

Features

• New fitting jig provides easier, faster installation
• New ball-joint Connecting Rod quickens installation
• Two latch-bolt lengths (models) for different gates
• Requires only one drilled hole through post
• Dual 6-pin locks can be rekeyed to match doors etc.
• Includes 125mm & 150mm connector rods (a spare if needed)
• Vertically & horizontally adjustable
• Industrial-strength polymer construction
• 316 marine-grade stainless components
• Fits fence posts 38–150mm deep

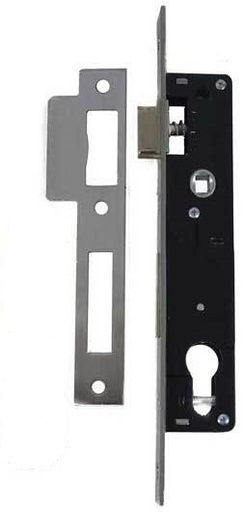

The Swing Gate Mortice Lock with Euro Cylinder is a high-quality locking solution designed for swing gates. With a 20mm backset, this mortice lock is installed within the gate frame, providing a clean and seamless appearance. The lock features a chrome faceplate, which adds a modern and stylish touch to your gate. The Euro cylinder provides smooth and convenient operation, allowing you to easily lock and unlock your gate. The cylinder can be replaced or rekeyed if needed, providing flexibility and security. The Swing Gate Mortice Lock is suitable for residential and commercial applications, offering reliable and robust security for your swing gate.

Maximum Gate Width & Weights

Max Weight : 750kg per leaf
Max Width of Gate/Door: 4m per leaf

The Centsys Centurion Vantage 400 Single Swing Gate Motor Kit is a comprehensive solution for automating single swing gates. This kit includes a powerful motor, control electronics, and accessories necessary for installation. Designed for 240V operation, it provides reliable and smooth gate movement for single swing gates. With a maximum gate weight capacity of 500kg, this motor kit offers convenience and security. It features adjustable speed and force settings, ensuring optimal performance and safety. The Centurion Vantage 400 Single Swing Gate Motor Kit is a reliable choice for enhancing your gate automation system.

Maximum Gate Width & Weights

Max Weight : 500kg
Max Width of Gate/Door: 2.5m

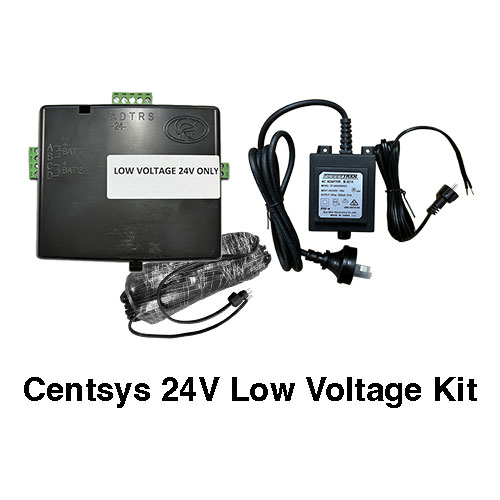

24V Low Voltage Kit for Centsys D5, D10, D20 Smart

Kit includes:

• Internal Transformer
• External Transformer
• 30m Cable

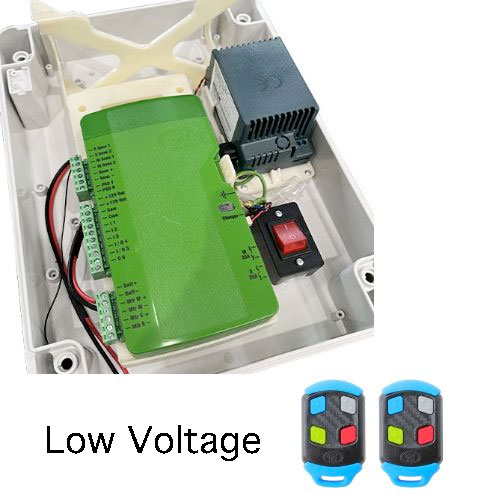

The Low Voltage Centsys VX Smart Box is a high-quality control board designed for swing gate systems. This control board offers reliable and efficient control, ensuring smooth operation and optimal performance of your swing gate. It is compatible with Centsys Vantage, allowing for easy installation and integration. The control board comes in a complete box, providing a convenient solution for your swing gate control needs. With advanced features and functionalities, it offers customization options to meet your specific requirements. With its durable construction and precise control capabilities, it ensures reliable performance and long-lasting operation.

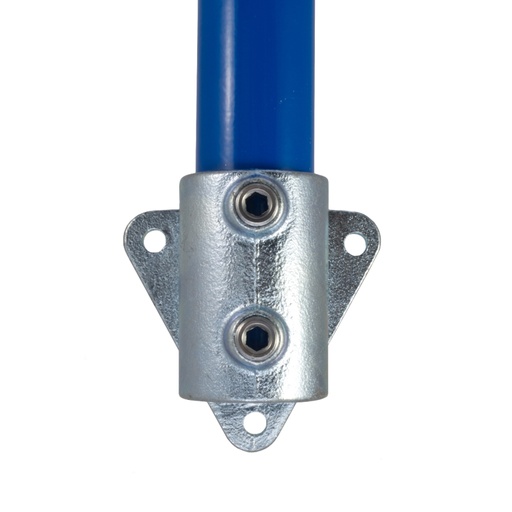

The TigerClamp 146 E60 Series Side Palm Fixing is a versatile pipe fitting designed to securely attach 50NB pipes with a diameter of 60mm. This side palm fixing provides a reliable connection for your pipe system, ensuring stability and durability. It is constructed with high-quality materials to withstand various environmental conditions, making it suitable for both indoor and outdoor applications. The easy-to-use design allows for quick and hassle-free installation, saving you time and effort. Enhance the functionality of your pipe installation with the TigerClamp Side Palm Fixing.

The Internal Sliding Gate Wheel Rollers are designed to provide smooth and effortless sliding gate operation. These rollers feature a white nylon wheel with a 90mm diameter, which reduces friction and ensures quiet operation. The rollers are mounted on a stainless steel bracket, providing durability and resistance to corrosion. With their U-groove design, these rollers are suitable for various types of sliding gates. Whether it's for residential or commercial use, these rollers offer reliable performance and ease of use.

Hold weight up to 100kg

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

• Sliding gate wheel
• Measuring tape
• Cutting machine
• Drill and drill bits
• Screws and bolts
• Wrench or screwdriver

Steps for Installation:

Prepare the Gate and Track:

• Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
• The track should be level and secure to ensure smooth operation.

Step One:
Measure the sliding gate wheel cradle, ensuring there's enough space to attach the wheel to the steel frame. Use a cutting wheel to make the cut, but first, drill four holes (one in each corner) using an 8-10mm drill bit. This will ensure the square hole is clean in each corner.

Step Two:
Clean up the rectangular hole with a file to ensure smooth edges, then spray the area with galvanized paint for protection.

Step Three:
Place the sliding gate wheel into the cut-out and check that it can rotate freely. Ensure there’s enough space for securing the wheel with a tek screw.

Step Four:
When screwing in the tek screws, make sure the wheel is aligned with the edge of the steel. The last thing you want is for the wheel to be out of alignment. Avoid welding the wheel if possible, as this can make replacement more difficult later on.

The Internal Sliding Gate Wheel Rollers are designed to provide smooth and effortless sliding gate operation. These rollers feature a white nylon wheel with a 60mm diameter, which reduces friction and ensures quiet operation. The rollers are mounted on a stainless steel bracket, providing durability and resistance to corrosion. With their U-groove design, these rollers are suitable for various types of sliding gates. Whether it's for residential or commercial use, these rollers offer reliable performance and ease of use.

Hold weight up to 60kg

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

• Sliding gate wheel
• Measuring tape
• Cutting machine
• Drill and drill bits
• Screws and bolts
• Wrench or screwdriver

Steps for Installation:

Prepare the Gate and Track:

• Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
• The track should be level and secure to ensure smooth operation.

Step One:
Measure the sliding gate wheel cradle, ensuring there's enough space to attach the wheel to the steel frame. Use a cutting wheel to make the cut, but first, drill four holes (one in each corner) using an 8-10mm drill bit. This will ensure the square hole is clean in each corner.

Step Two:
Clean up the rectangular hole with a file to ensure smooth edges, then spray the area with galvanized paint for protection.

Step Three:
Place the sliding gate wheel into the cut-out and check that it can rotate freely. Ensure there’s enough space for securing the wheel with a tek screw.

Step Four:
When screwing in the tek screws, make sure the wheel is aligned with the edge of the steel. The last thing you want is for the wheel to be out of alignment. Avoid welding the wheel if possible, as this can make replacement more difficult later on.

The Internal Sliding Gate Wheel Rollers are designed to provide smooth and effortless sliding gate operation. These rollers feature a white nylon wheel with a 100mm diameter, which reduces friction and ensures quiet operation. The rollers are mounted on a stainless steel bracket, providing durability and resistance to corrosion. With their U-groove design, these rollers are suitable for various types of sliding gates. Whether it's for residential or commercial use, these rollers offer reliable performance and ease of use.

Hold weight up to 120kg

Installing a sliding gate wheel involves a few key steps to ensure the gate operates smoothly. Here’s a step-by-step guide to help you install it:

Materials Needed:

• Sliding gate wheel
• Measuring tape
• Cutting machine
• Drill and drill bits
• Screws and bolts
• Wrench or screwdriver

Steps for Installation:

Prepare the Gate and Track:

• Before installing the wheels, ensure that your sliding gate is already installed and that the sliding track is properly laid out.
• The track should be level and secure to ensure smooth operation.

Step One:
Measure the sliding gate wheel cradle, ensuring there's enough space to attach the wheel to the steel frame. Use a cutting wheel to make the cut, but first, drill four holes (one in each corner) using an 8-10mm drill bit. This will ensure the square hole is clean in each corner.

Step Two:
Clean up the rectangular hole with a file to ensure smooth edges, then spray the area with galvanized paint for protection.

Step Three:
Place the sliding gate wheel into the cut-out and check that it can rotate freely. Ensure there’s enough space for securing the wheel with a tek screw.

Step Four:
When screwing in the tek screws, make sure the wheel is aligned with the edge of the steel. The last thing you want is for the wheel to be out of alignment. Avoid welding the wheel if possible, as this can make replacement more difficult later on.

The  Sliding Gate Wheel with U-Groove is designed to provide smooth and reliable operation for your sliding gate system. With its 90mm diameter and U-groove design, this wheel offers excellent traction and stability. The double-bearing system ensures smooth movement and reduces friction, allowing for effortless gate opening and closing. This wheel does not include a bracket, providing flexibility for mounting options. Upgrade your sliding gate system with the Sliding Gate Wheel for enhanced performance and durability.

Hold weight up to 160kg

The  Sliding Gate Wheel with U-Groove is designed to provide smooth and reliable operation for your sliding gate system. With its 70mm diameter and U-groove design, this wheel offers excellent traction and stability. The double-bearing system ensures smooth movement and reduces friction, allowing for effortless gate opening and closing. This wheel does not include a bracket, providing flexibility for mounting options. Upgrade your sliding gate system with the Sliding Gate Wheel for enhanced performance and durability.

Hold weight up to 140kg

The  Sliding Gate Wheel with U-Groove is designed to provide smooth and reliable operation for your sliding gate system. With its 60mm diameter and U-groove design, this wheel offers excellent traction and stability. The double-bearing system ensures smooth movement and reduces friction, allowing for effortless gate opening and closing. This wheel does not include a bracket, providing flexibility for mounting options. Upgrade your sliding gate system with the Sliding Gate Wheel for enhanced performance and durability.

Hold weight up to 120kg
